Why protecting the soil from changing weather matters

Posted on December 14, 2024 by - Climate adaptation

In this series, we look at the changes in management that farmers and growers are taking in response to a changing climate. We’re looking at the tips, techniques and approaches that are borne out of the lived experience of farmers and growers, in response to a changing climate driven by global heating.

FCT exists to help food and farming businesses to reduce their carbon footprint, but increasingly every farming business also is having to adapt to the climate that we now have. It’s therefore vital that food and farming does both climate mitigation and adaptation at the same time.

Pitney Farm Market Garden

Adam Beer and Rita Oldenberg run Pitney Farm Market Garden in Somerset, with 4.5 acres of organic vegetables, sold locally. They have been recognised as the 2024 Young Organic Growers of the Year https://www.organicresearchcentre.com/news-events/news/yofgy-winners2024/  and are very active in the organic growing movement.

Adam and Rita, with their daughter

Over recent years they have noticed a change in weather patterns, which has affected their farm in significant ways. Adam comments:

“The increasing frequency and intensity of high rainfall events coming with our changing climate are causing challenges in crop planning, and significant impacts on our soil. Soil erosion and water infiltration can be made much worse by heavy rainfall, especially in short amounts of time, as we’ve been experiencing.”

Indeed, research by EJP Soils shows that changes in rainfall patterns across Europe will be responsible for up to 23% more soil erosion by 2050. This could have very significant impacts on soil health, water quality and could lead to significant losses of soil carbon – the one major asset that farmers have to sequester carbon on their farmland.

The UK Met Office predict that rainfall will get more intense in both summer and winter over coming years and decades, in particular with very local variations; in other words, hard to predict and plan for.

Protecting the soil

Whilst we can’t influence the weather, we can respond to the weather patterns as we see them emerging. A good example is how we manage our soils, as this is so fundamental to food and farming. It is well known that leaving soil uncovered (in arable and horticultural systems) can lead to soil erosion, a decrease in soil organic matter, a loss of soil biodiversity, and other negative impacts on soil health and structure.

In turn, bare soil can have significant short and long term impacts on crop health, quality and yields. Water courses can end up being clogged up with soil and full of the nutrients that should be in our fields. Carbon can be oxidised and lost to the atmosphere, so that soils emit rather than sequester carbon.

Working out ways to change farming systems to be more resilient to these changes in climate will be critical for all farmers and growers. There are range of ways to build a more resilient soil, as Adam discusses:

“Over the last few years, we have changed our soil management practices. We’re working towards improving and maintaining soil health through regenerative principles. We’ve reduced tillage significantly, ploughing just one year in four now, and using pig tail tines as primary cultivation, with a power harrow. We’re also rotating some land with livestock and we’re very keen on keeping living roots in the soil as much as possible.

An example of standing water in tractor wheelings and a bed of carrots just harvested, with bare soil visible

Importantly we’ve really increased plant diversity and soil coverage. We’re constantly undersowing crops, so 80-90% of all fields have a green manure of some sort. This reduces exposure of soil to the weather, builds fertility and increases biodiversity.

There are three rotations across the market garden. Fertility building leys make up about 20-25% of land in any given year. Here we’re using 10-15 different varieties, including clovers, and annuals or biannuals – no long term grasses, we prefer cereals like rye oats and barley, plus winter wheat. We’re aiming to put in more deeper rooted species such as plantain, buckthorn, chicory, yarrow.

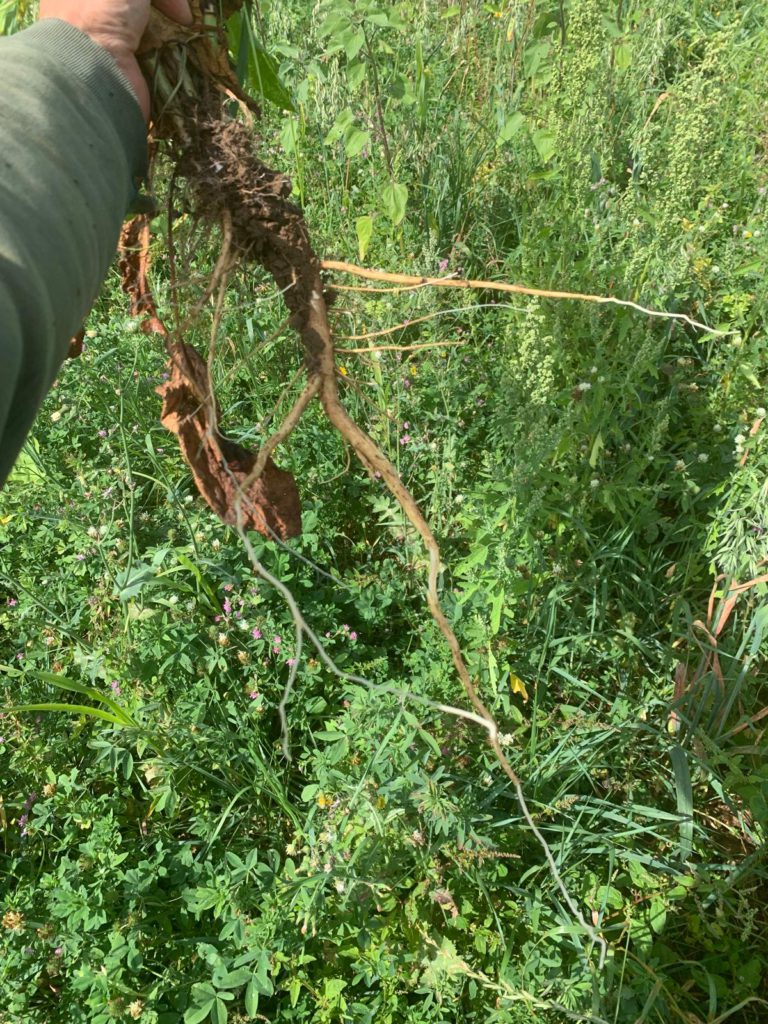

Deep rooting species can help improve soil structure and water infiltration

We also add manures (from our landlord’s organic farm), the amount being crop dependent. But with Soil Organic Matter levels at over 7%, we don’t need to add too much manure, and increasingly the green manures are performing that fertility building role.”

The impacts

Seeing is believing, and farmers and growers tend to learn a lot from looking at each other’s farms and understanding what others do differently. Knowing when something is working can be self-evident to farmers, not necessarily needing research to back it up.

At Pitney Farm Market Garden, Adam describes the impact of the changes they’ve made:

“Water infiltration rates on the areas covered by green manures are so much better; it’s obvious just to look at. There is no standing water on the green manures, even after heavy rain, whereas in the wheelings and a few bare beds there is standing water. This is evidence enough to me that we’re doing something right.

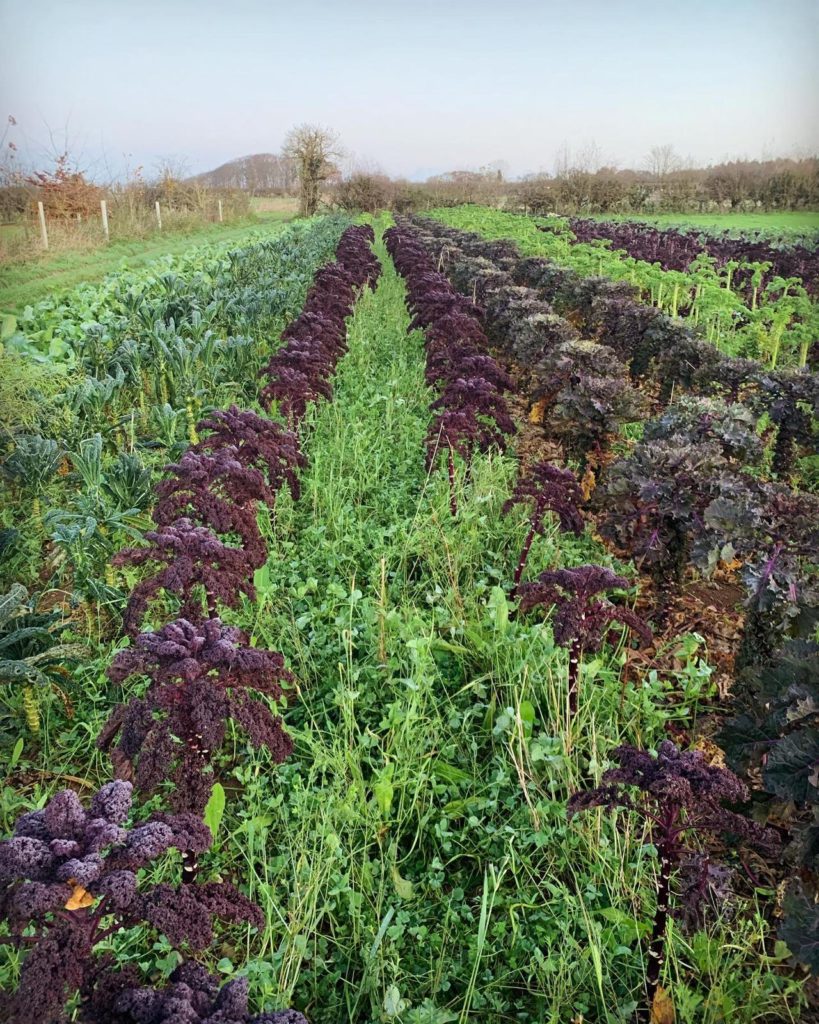

Kale with red and crimson clover undersown

Living plants cover the soil, reducing the speed and intensity that rain hits the soil. Roots help water sink into the ground, massively increasing infiltration rates and stopping the water running off the surface and carrying soil with it.

Soil improvements through Adam and Rita’s management have led to much improved water infiltration through better soil structure and aggregation

The healthier a soil is, with better aggregation, the faster the infiltration rate will be, meaning the larger amount of rainfall that the soil can deal with. We’re seeing good aggregation now in the top four inches of soil and lots of earthworms. We’re hoping that by introducing more deeper rooting species that aggregation will improve further down the soil profile.”

Bigger picture

When it comes to managing these issues of flooding and drought on a wider scale, Adam shares some thoughts:

“I’m coming to think that undersowing crops and ensuring the soil is covered, is actually an essential practice, not a nice add on. This is because of the increasing frequency and intensity of high rainfall events coming with our changing climate.

A lot of our agricultural soils in this country are in poor health. Many soils – particularly those under maize, are in very poor condition and have very little capacity to hold water.  As the climate deteriorates, more and more farmers have to work harder and harder to produce crops, and do even more to protect our most precious resource, the soil, from harsher conditions.

Green manures and crops side by side, ensuring almost full soil cover at Pitney Farm Market Garden

Is the support, both technically and financially, in place to help farmers across the board to do this? Sadly, I really don’t think it is. The government doesn’t have a handle on it, and is not taking it seriously, which is really worrying. The climate crisis terrifies me on all sorts of levels. The impacts on global food supply chains and food security could be massive. We need to manage our soils better to both mitigate and adapt to climate change, as well as recreating our food systems to build resilience in food and farming.”

Photo credits: Adam Beer

Author: Jonathan Smith

In the Spotlight: The Incredible Role of Dung Beetles on Livestock Farms

Posted on October 31, 2024 by - News

The inaugural Dung Beetle Conference took place in June 2024 at Yeo Valley Holt Farm in Bristol – a collaboration that puts this tiny beast on the farm vet agenda.

Written by Rob Howe

It would have seemed a far-fetched idea a few years ago, a two-day conference about dung beetles attended by farmers, vets, policymakers and schoolchildren. Yet in June this year, we pulled it off, with huge thanks to Dr Hannah Jones (Farm Carbon Toolkit) and Rob Howe (BCVA, COWS, Vet Sustain), together with event sponsors, First Milk, Yeo Valley, Techion, Micron Agritech and Duggan Veterinary Supplies.

Hannah and Rob share mindsets around regenerative farming topics and how dung beetles should fit into all farmer’s thoughts and practices. Researchers have previously held Dung Fauna conferences, but these have been largely academic. This re-imagining of those events held by Richard Wall, Bryony Sands, Sarah Beynon and others, aimed to focus on biodiverse farming and integrated parasite management (IPM), which has been the focus of Rob’s work both in practice, in research and in his Nuffield Scholarship.

Conference Write-Up

The conference was opened by Sarah Beynon who spoke passionately about dung beetles and of her seminal work calculating their positive £367m of beneficial financial impact every year to UK cattle farms. Darren Mann, widely considered the gospel on dung beetles, wowed the audience with his own passion and bluntly hilarious style! We then heard of the impact parasiticides have in the environment and the degradation times of dung pats, as well as new research linking their abundance and diversity to soil health parameters from Bryony Sands, video-linked from the USA.

Organisers found it rewarding to see all the decades of superb work from so many inspiring people, brought together and shared with those that need to know it most – farmers and vets.

There is an impressive body of work now that led to my own  efforts in proving there is an alternative approach – Integrated  Parasite Management (IPM)

Rob Howe, BCVA, COWS, Vet Sustain

Rob Howe spoke on the importance of IPM, and the vital role of the vet, along with a vision for animal health tied in with this new approach. I then had the privilege of handing over to a wide array of experts in their fields to talk on the individual subjects and strategies that make up IPM, including species diversity, farming biodiverse, breeding for resilience, the role of trees, pasture management, soils and FEC testing. It was a ram-packed day punctuated at lunch by a dung safari led brilliantly by Darren Mann.

The conference also offered an opportunity to see demonstrations of key providers of in-house FEC testing by FECPAK, Micron, and Ovacyte who all attended and sponsored the event

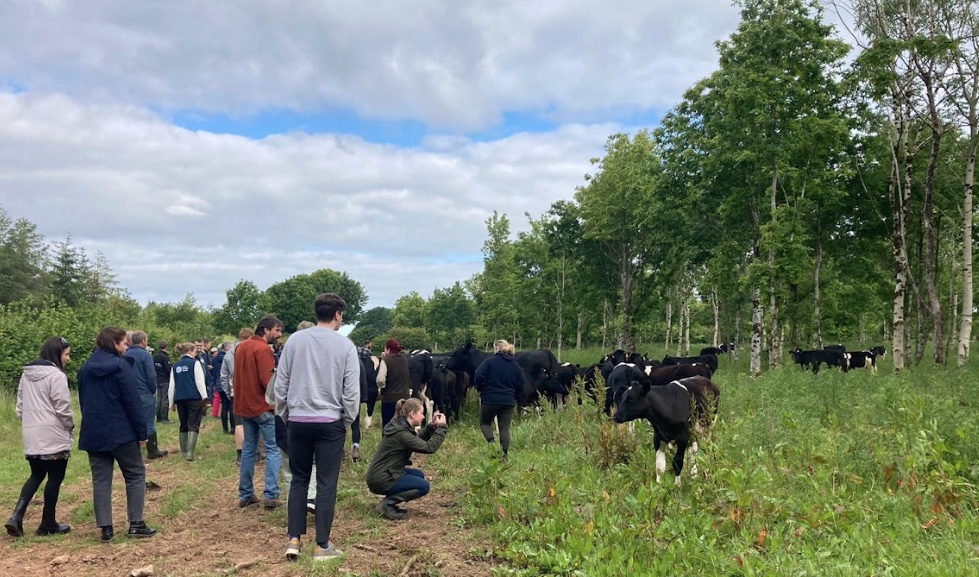

Day Two started in the mature agroforestry system, and a dung beetle hunt was led by Claire Whittle, with input from many others including Sally-Ann Spence and Lindsay Whistance, whose work on the value of trees for livestock, needs much more airtime.

Over the two days we got to hear from so many great speakers all linking dung beetles to wider biodiversity including birds, a fantastic project on Dartmoor and how equine and small animal vets and owners are grasping the opportunity to have similar positive impact in their respective fields.

 The responsible use of parasiticides

The conference ended with a workshop supported by BCVA, COWS and Vet Sustain. The workshop opened with a short “scene setting” presentation from the VMD with an overview of the current regulatory framework for veterinary medicines in the UK. The discussion groups focused on the issues around responsible prescribing and parasiticide use and identifying workable solutions and associated actions to drive much-needed positive change to promote the responsible use of parasiticides.

BCVA has been working hard behind the scenes for some years to influence progressive policy change in this area. BCVA’s policy on parasite control was launched by Sally Wilson in 2021, following Rob Howe’s IPM workshop and introduction to the power of dung beetles at Congress. BCVA has since been involved in wider collaborative discussions with the VMD and additional stakeholder organisations and recently worked with BVA on parallel activities to make progress on this important subject.

Key asks, actions & outcomes from the workshop

Farmers, farm advisors and farm vets all fed back in the workshops, offering a range of ideas, with the following common themes:

Education

  • To promote IPM as a more sustainable way to approach the use of parasiticides, all groups cited novel education and training as essential – specifically, for practising vets but also in vet schools and agricultural colleges.
  • A strong desire for everyone to get on board with a “new narrative” on display at the conference, reaching beyond IPM, producing food good for humans, the planet and of course animals.
  • Peer-to-peer learning opportunities were valued highly by everyone when it came to shifting farming practices, with many on display at the conference.

Funding

  • It was highlighted that opportunities for IPM to be funded within the SFI-type schemes, as it is in the arable sector, would be beneficial.
  • A general fund for (farms’) innovative ideas rather than prescriptive lists. Excellent examples might be EID/  Handling/Weighing facilities for DLWG and helping IPM &  targeted selective treatments.
  • A cross-industry fund created to facilitate the rollout of IPM; training and tools for delivery and recording.

Monitoring

  • Collecting baseline figures on top-level use for the livestock sector would enable monitoring of progress, similar to those seen with antibiotics. The VMD were present, and we hope in time will help deliver this.
  • The same applies to the farm level where benchmarking could help drive change. This may be more likely to come from the industry itself.

Policy & Governance

  • Advertising of parasiticides should not be targeted at end users (across spp)
  • POM-V status could ensure this, but so could a legal change in advertising rules for parasiticides.
  • IPM should come into landscape recovery, and eventually as standard everywhere
  • A desire for support for vaccines such as louping ill to be available and others developed
  • More robust environmental assessments (small animals particularly) and enforcements of product advisory wording across species.

Communication

  • The need for improved communication between the entire farm team and advisors
  • Improved communication between vets and SQPs would be ideal. An app to facilitate IPM may be able to help achieve this.

Landscape approaches

  • Commons health plans and or landscape health plans (look outside the farm gate).

Industry support, facilitation & incentives

  • Milk buyers are already involved in a positive way. Great examples here at the conference with First Milk and Yeo Valley sponsoring and encouraging positive changes.
  • Others including M&S support farms to look at parasite control through an IPM lens and Muller leading the way in starting to measure usage.

Timeline for Change

  • Sentiment for action was positive, with 5 years set as a target, since this movement is already happening as evidenced at the conference, and people are aware, so major change could happen quite quickly.

Get in touch and join the movement

The conference concluded with a commitment to work across the sector to progress these key actions. We would like to hear from anyone keen to help achieve these aims and or be involved in the next one. Please contact Rob_ [email protected] or [email protected].

Conference Acknowledgements

This conference built on a brilliant legacy of research, and brought together farmers, vets, soil experts, entomologists, researchers, industry and public, to celebrate the great work that is going on, but also to shape future policy and regulation. In the interest of brevity, it hasn’t been possible to acknowledge every speaker, contributor or supporter of this event, but the organisers would like to thank everyone who helped make this happen and also show appreciation to all those who have worked for some time in this important area to advance our profession’s understanding. And finally, a huge thank you to all the event sponsors – Yeo Valley, First Milk, Techion, Micron Agritech and Duggan Veterinary Supplies – without whom we could not have made this day happen.

Conference Reflections from a Vet
Andy Adler – Farm Carbon Toolkit – Vet Perspectives

As a vet who has been out of clinical work for a while, I turned up to the Dung Beetle Conference 2024 due to my role in one of the sponsoring companies, Farm Carbon Toolkit. I had been aware of dung beetles and integrated parasite management (IPM), but I had little knowledge and no experience discussing IPM with farmers.

I found a place with positive energy and a diversity of farmers, vets, and industry professionals united in the need to identify how to support ecology in farming while supporting food production. The mix of sponsors from First Milk, Yeo Valley and Farm Carbon Toolkit meant that the industry was well represented and led the conversation on how to get to a farming system with a positive impact on the environment and nature.

Shifting baselines (Masashi Soga, 2018) come to mind for me. Farmers there described how dung pats would disappear within 24 hours as multiple species of dung beetles eat, bury and process the dung. I still find this expectation ‘unbelievable’; however, I accept that this is due to my shifted baseline of expectation. I also realised that as vets, we must deal with the conflict of interest between animal needs and the owner’s ability. Now, we have to deal with disputes between animal needs, nature needs and the owner’s ability to understand how best they can balance off competing demands.

I left after two days of interactive talks and an exploratory field safari, identifying dung beetles and understanding their abundance within healthy pats. My mind was opened. I now look in cow pats and understand how few beetles are on some farms.

The following questions (and more!) have sat with me since.

– How can we understand our shifted baseline and rebalance it?
– How do vets deal with an additional conflict of interest?
– Can IPM become a veterinary campaign similar to the Mastitis Plan or Health Feet Program?

I would highly recommend that farm vets think about dung beetles and their moral and ethical responsibilities towards the environment, animal welfare, and owners’ needs.

Further reading

Read our blog: What are Dung Beetles?

Groundswell reflections: how close can agriculture get to being carbon positive?

Posted on July 18, 2024 by - Insights, News

Groundswell

by Liz Bowles, CEO

Groundswell this year was as exciting as ever, with so many excellent sessions and people to catch up with and meet for the first time.

There was much interest in how farmers and growers can benefit from the new markets for carbon, biodiversity net gain and nutrient neutrality to name but three, but to my mind, there was far less attention on how the sector can actually reduce the emissions associated with producing food itself.

For me, this is critical as we have to find a way to reduce the greenhouse gases we push into our atmosphere, as well as removing some of the historical emissions already there, if we are to reduce the worst impacts of climate change.

There is, however, a central question for our food system which is: What level of emissions are inevitable from the production of food which is essential for humanity? The Climate Change Committee has come up with a view on this in their 2020 UK agricultural policy for net zero report, which suggests a road map for saving 64% in the annual emissions from agriculture compared to 2017 levels when UK agriculture was responsible for around 58 MtCO2e (12% of total UK  emissions). On closer inspection of the figures though, the actual savings in emissions from agriculture are set at around 21 MtCO2e / year, with the remaining savings to come from forestry, changes to our diet and the production of energy crops instead of food.

This is set out below:

The specific actions suggested for each of these areas are set out below:

  • Tree planting on 30,000 hectares per year
  • Use 10% of UK farmland  for agroforestry (no distinction made between agroforestry and hedgerows)
  • Restore at least 55% of peatland area by 2050. (For lowland peat lands this means rewetting or paludiculture to reduce emissions and for uplands this means rewetting).
  • Increases in low-carbon farming practices for soils and livestock (no detail provided)
  • Increase the area of farmland devoted to energy crops to 23,000 ha per year

From this list, the low carbon farming practices interest me in terms of how their adoption will enable an annual reduction of 10MtCO2e per year to occur (~25% of 2022 UK agricultural emissions). At Farm Carbon Toolkit we work directly with farmers and growers to adopt these practices and changes to current management processes. Typically the areas to focus on include:

  • Planting cover crops
  • Changing crop rotation
  • Transitioning to no/min till where possible
  • Growing new crops
  • Integrated pest management
  • Adopting rotational grazing
  • Planting herbal leys

Across all these practices, there should be a focus on reducing the use of artificial nitrogen fertilisers and purchased livestock feed (especially those including imported ingredients) as both these inputs carry a high level of associated emissions.

Many of these practices can also be considered to be part of the suite of “regenerative farming principles”. Adoption of more regenerative farming practices is growing steadily, but for many farmers, the key question surrounds the financial viability of their adoption when margins are so tight. A recent report commissioned by the Farming for Carbon and Nature Group and funded by the Natural England Environment Investment Readiness Fund (NEIRF) sets out the financial and climate impact of adoption of more regenerative farming practices and systems and includes partial budget information on the financial impact of adoption in England with support from SFI where relevant.

Regenerative farming practices and their financial viability, including external support available in England, where available

This chart clearly shows that with the inclusion of SFI support, many of the practices generally considered to be regenerative are likely to deliver a similar margin than more conventional practices in these areas. The area where more support is needed is in the adoption of more complex arable rotations including pulses and fertility building leys, where even with appropriate SFI payments, the margins from shorter more degenerative rotations are likely to be more profitable. We are a member of the Nitrogen Climate Smart Consortium which is supporting the increased production of pulses and legumes in the UK together with their use as animal feeds to address the need to reduce the use of artificial fertilisers and imported animal feedstuffs. This project will support farmers to do this through farmer field trials as well as the introduction of new technology for on-farm pulses processing.  You can find out more about this project and get involved by following this link.

In summary, I am fairly confident that UK agriculture can reduce greenhouse gas emissions by at least 10% through the adoption of low-carbon farming practices. Indeed through some of the practical work with farmers in which FCT is involved, we are seeing higher levels of emission reductions being achieved within businesses with little or no change in farm output and in many cases increased profitability and business resilience. The element which is mostly missing is the confidence and knowledge to make the necessary changes and knowing where to start.

At FCT we provide a (free for farmers and growers) Farm Carbon Calculator to allow businesses to understand their starting point, a set of tools within our Toolkit to assist businesses to make those chances and a team of expert advisors to talk to.

You can always make contact with us by email [email protected] or by calling us on 07541 453413. We look forward to hearing from you.

Net Zero Carbon Course for Upland Farmers & Advisors – Free Places Available in Cumbria

Posted on June 6, 2024 by - News

University of Cumbria is offering their part-time short course ‘Upland Farming for Net Zero’ delivered in partnership with Farm Carbon Toolkit, across 5 weeks from 9th September 2024. The course will take place in Cumbria, with sessions at the University of Cumbria’s Ambleside Campus, at upland farms across the county, and online.

Participants will learn where and how greenhouse gases are emitted, captured and stored on an upland farm. Farm visits and theory sessions will enable a comparison of farming practices and land management options, with climate impact in mind. In-person workshops will build skills and confidence to enable each participant to complete a quantitative farm carbon audit and make practical recommendations for actions towards net zero emissions.

To apply for the course and for more information, please visit https://www.cumbria.ac.uk/study/courses/cpd-and-short-courses/upland-farming-for-net-zero-/

Up to 12 full bursaries, subject to eligibility, are offered by the Foundation for Common Land via their Our Upland Commons project, with details available here.

Farm Carbon Toolkit supported the development of this accredited course for farmers, advisors and new entrants and worked with the University of Cumbria to enable delivery of the course for the first time earlier this year, in Dartmoor. Comments from participants included:

  • It was really worthwhile and I’ve gained a lot of knowledge and practical skills from attending
  • Plenty of on-farm, real-world teaching and examples
  • Becky was a fantastic tutor- incredibly engaging and knowledgeable
  • Very hands-on and easy-to-follow material

Soil Farmer of the Year 2023 – Farm Walk with Richard Anthony

Posted on April 18, 2024 by - Insights, News, Soil Farmer of the Year

Written by Tilly Kimble-Wilde, Farm Carbon and Soil Advisor

Richard Anthony, of R & L Anthony near Bridgend, was awarded Second Place in the 2023 Soil Farmer of the Year competition. He was commended on how he responded to and managed challenges, never veering from thinking holistically, always upholding soil health as a priority, and treating each challenge as something from which to learn.

A majority arable business, Richard farms a 6-year rotation of wheat, maize, oilseed rape and westerwolds intermixed with a diverse array of cover and companion crops which he is passionate about. “The emphasis on farm is the soil, improving the soil and organic matter, and keeping a crop in the ground; keeping the soil biology alive.”

Richard and the team also strive to promote and create habitats for wildlife: planting wild bird seed mixes, establishing wildlife corridors, and bordering all hedgerows with a 3m margin to encourage growth year on year. 2m flower margins have also been implemented around all fields of oilseed rape which has been, to quote, “absolutely fantastic.” Encouraging insects and bees and getting the public on side too.

The farm walk itself took place on 23rd November 2023 and kicked off with a presentation taking us through the past year and outlining the various activities and obstacles the farm faced. We were then treated to a fantastic farm walk whereby Richard gave our group of visiting farmers, agronomists, and advisors a tour of some of what they get up to across their extensive arable and forage business.

A big part of what Richard and his team are trying to achieve across the farming business is to use very little bagged fertiliser. Most of the nutrients applied to the soil come from digestate, conveniently stored in the farm’s digestate lagoon. Tankers come in and fill alligator bags for easy transport and the digestate is spread on wheat, oilseed rape and maize.

So far, Richard has managed to eradicate artificial fertiliser when growing maize and OSR; however, wheat still receives a small amount of early application. This wouldn’t have been possible without the construction of the digestate lagoon, a project which was undertaken at the beginning of last year. Still, as Richard says, there is room for improvement. The farm is looking to reduce its N inputs even further by trialling an N inhibitor, all to build more resilience into the system.

This mindset has been applied to fungicides.  To use less, Richard has changed the sprayer to accommodate the wet and windy weather brought in from the coast. Now at 250cm spacing, the booms can run very low resulting in no drift even if it’s windy. This enables more spray days and a better chance at getting the timeliness right.

As with most farms across the UK, the weather has been the biggest challenge with dry weather in May and June, and then rain as soon as harvest began.

Luckily, Richard had installed a biomass boiler 6-7 years ago for grain drying after a very wet harvest having heard about them in Scotland. It has been a game changer. Their 1-megawatt biomass boiler provides a lot more spare heat than previous methods of grain drying where they used up to 1.2 megawatts of gas on one drying floor. In the old system, if they were on 25% moisture, it took 10 days to dry one side. With the biomass boiler on woodchip, they can dry 2 drying bays, double the output, and never have to run the boiler flat out. With the right combine (Richard uses a MacDon belt header), the corn is cut as soon as it gets to 25% and achieves good output, as Richard emphasises “do not wait”.

Planting OSR in August was a struggle, with some fields too wet to put a tine in and any cultivation out of the question. Instead, Richard planted the wet parts of the field by snipping the OSR with a sprinter drill and planting the dry parts with a farm standard drill and a top down.

To better manage the unpredictable weather, Richard has a selection of drills that he’s held onto rather than sell. The farm will run 2, sometimes 3 drills if they can, capitalising on days when they have the right weather. This was especially helpful during autumn when the farm received 295mm of rain in October alone.

The farm also spends a lot of time on drainage. Ditches are cleaned, dug out, drains put in; all with the aim of evening out patches in fields and making the farm more resilient. As Richard says, it’s great getting 16t/ha on wheat in a bit of field but if you’re only getting 3t/ha in another part because it’s too wet there is space to do better.

Still, the most used bit of kit on the farm is a spade.  By continually monitoring and assessing soil structure, Richard can make a well-informed decision when determining how to establish the next crop.

Farm Walk

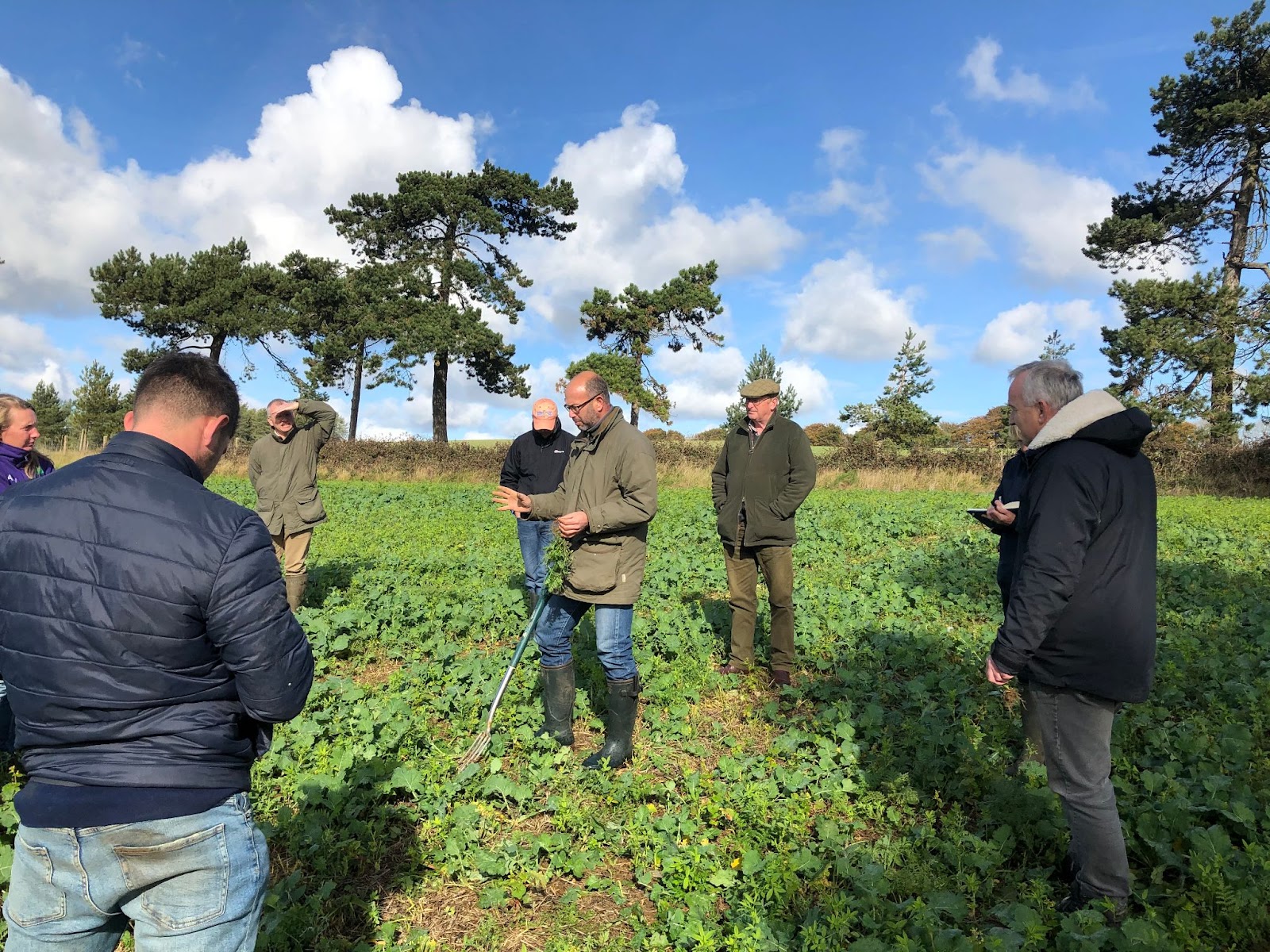

During the farm walk, we were shown multiple cover crop and companion crop trials that were taking place on the farm. Steve Corbett from Agrii has worked with Richard for many years, trialling different varieties and combinations, highlighting the importance in being selective. You need good establishment, and it must earn its keep.

What they have found is that OSR, a “lazy rooting brassica”, completely lends itself to companion cropping, in this case with beans, spring vetch and buckwheat. Beans help to get the roots down as well as provide free nitrogen through nodulation. Spring vetch as opposed to winter vetch grows quickly providing biomass and N fixation. Buckwheat adds to the canopy, slowing down flea beetle, making it more difficult for pigeons to land, as well as mining phosphates. When the companion crops die, all the fixed nitrogen and phosphates will be released back into the soil ready for the next crop.

Richard deliberately plants OSR at low seed rates to encourage big branchy plants in spring which will grow away, allowing light through the canopy. By choosing thicker and well-branched OSR types, flea beetle is more contained, damaging only the outer leaves, leaving the middle to branch out. In Richard’s experience it provides a plant that will survive despite a pest living within it.

In terms of cultivation, Richard is a big fan of direct drilling. When direct drilling wheat, he believes it is important to see what is happening underground: what is the root depth? Taking stock of root depth and maintaining that attention to detail during crop growth is essential to determine the next steps in terms of cultivation. At Sealands farm, root depth is critical to survive the winds, Richard has found through monitoring that cultivation disrupts root growth, and that direct drilling fits his system best.

Ultimately, Richard has tried a lot which didn’t work out, but he’s kept at it. One outcome which has surprised him the most was the success of forage rye which he believes is underestimated. In the field, Richard showed us the root mass it was building and the excellent soil structure it yielded. This has provided Richard with an extra income stream, either taken for silage or grazed (ensuring to move stock on in wet conditions to avoid undoing all the good work he’s built up!).

Looking to improve the soil structure even further, Richard planted the forage rye together with westerwolds. He found that they were able to harvest the westerwolds a fortnight earlier due to the ability of the forage rye to get away in the spring creating its own microclimate which Richard believes benefitted the westerwolds.

Finally, we heard about Richard’s problem with persistent perennial ryegrass. In this instance, he introduced an annual ryegrass to outcompete the perennial. “Putting in a bully to outcompete a bully”. It worked and Richard is now able to include it within the arable rotation without generating a loss. This allows a rest period within the rotation to build fertility, stabilise soil structure and generate a bit of extra cash from silage or grazing. Essentially, Richard is maintaining the balance of farming resiliently: optimising soil health and crop yields while sustaining a viable business.

As we’ve all come to realise, we can’t rely on the weather, however, prioritising soil health as perfectly exemplified by Richard, can better equip us to respond and adapt. When we get to know our soils, monitoring how they behave in certain conditions and how they respond to our actions, we are better prepared and forearmed to make decisions that will affect future harvests and pocket.

Through trials and problem solving, Richard together with Steve have implemented more diversity and reduced inputs without damaging profits. A big resistance to straying from our well-known and “safe” rotations is often down to “how will it pay for itself”. Richard and Steve have shown that they’re not radical in their rationale for cover and companion crops, the bottom line is it has to pay. The most exciting take home from the day is they didn’t give up: they’ve found the right species to incorporate, the soil health on farm is improving and crop yields are directly benefiting. It was a truly inspiring day and a masterclass in perseverance. Richard hasn’t made it look easy by any stretch but as he puts it “we’re just learning all the time.”

You can read the full report here.

Soil Biodiversity

Posted on April 18, 2024 by - Insights

By Stefan Marks, Farm Carbon and Soil Advisor

One gram of soil can contain one billion bacteria and up to 10,000 different species of bacteria with only 1% of organisms estimated to have been identified.

The soil functions as part of a vital living system which supports crop and animal health, underpinned by massively complex interactions between the biological, chemical, and physical properties of the soil. Life in the soil is often underestimated, spanning millions of species and billions of organisms which account for the highest concentration of biomass from anywhere on the planet. Fertility and crop performance are at risk of being distilled down to the chemical or physical constraints of the soil in isolation. This encourages an oversimplified approach to soil management. Sustainable Land Management, and the move towards regenerative agriculture encourages a more holistic management of the soil, resulting in enhanced biological diversity and so delivering the key benefits. It is important to recognize the importance of soil biology without overthinking its complexity, after all, we cannot manage for individual microbial species.

Soil Microorganisms

Soil microorganisms describe both bacteria and fungi, whose abundance makes up much of the biological biomass in the soil. Bacteria and fungi produce a range of enzymes which can break down and absorb inorganic and organic matter which is later made readily available as nutrients to plant roots. Fungal communities form larger hyphae ‘networks’ which are beneficial in mobilising nutrients in mutualistic exchanges with rooting structures. These fungal hyphae can extend over great distances and further help with the aggregation of the soil, improving soil stability, water holding capacity and therefore a greater resilience to droughts and waterlogging.

Bacteria exudates form the ‘glues’ which facilitate the formation of microaggregates from soil particles and as well as increasing the cycling of nutrients with a particular focus on the nitrogen cycle. Both fungi and bacteria are responsible for the breakdown of organic matters within the soil profile and so populations benefit greatly from manure applications.

Due to their short life cycles, the population of these organisms may shift rapidly as a result of changes to their environment including the soil temperature, moisture and chemical composition. A healthier soil will generally have higher microbial biomass and will benefit from a larger fungal-to-bacterial ratio. Applications of agrochemicals and fertilisers can impact populations with overapplications of nitrogen promoting a more bacterially dominated soil. Likewise, tillage can break up the fungal hyphae which are more sensitive to physical disturbance.

Soil Macrofauna

The macrofauna are larger organisms which inhabit the soil with perhaps the most notable being the earthworm. Not only do earthworms operate as ecosystem engineers to enhance the soil and provide a better environment for other plants and animals to reside but they are an excellent indicator of soil health. Whilst it can be difficult to measure soil biodiversity the presence of earthworms indicate, on a larger scale, a healthy operating food web with a distribution of organisms across all trophic levels. As such earthworm numbers have become a good metric for biological soil health which are a result of and have an impact upon the chemical and physical properties of the soil. Earthworms fulfill different functions based on their niche, with the three main groups being:

  • Epigeic –  Inhabit litter layer and cycle carbon
  • Endogeic – Topsoil dwelling and enhance soil aggregation and nutrient mobilisation
  • Anecic – Deep burrowing improving porosity, water infiltration and root development

Considerations for Biological Soils

  • Feed the soil: amendments of organic matter will benefit soil organisms as it provides a feed source for them to thrive on. Conversely the greater the soil fauna populations the quicker and more available the nutrients. Over applications of inorganic fertility sources can have a negative impact causing the soil to become too bacterially dominated.
  • Crop diversity: the greater the crop diversity the greater the diversity in below-ground populations as there is a greater range of plants to feed and interact with in the growing environment. This necessitates the implementation of more diverse crop rotations into arable systems and will benefit from greater diversity in grassland with the inclusion of legumes and herbs.
  • Reduced tillage: tillage can have an adverse effect on established populations of soil organisms from the fungal hyphae all the way up to the earthworms. A move towards less intensive tillage through the adoption of no-till or min-till establishment at suitable parts of the rotation will help to maintain soil biological populations.

Overall, the biological component of the soil should not be overlooked as it is an essential part of a vital, living soil. Allowing soil to function properly will bring a host of benefits which can result in real world cost savings. Chief among these benefits may be the increased resilience in a changing climate.

Farm Net Zero at Oxford Real Farming Conference 2024

Posted on January 20, 2024 by - Farm Net Zero, News

An intrepid band of Farm Net Zero farmers and project staff made their way to Oxford for the Real Farming Conference where we were presenting a session called “It Takes a Farm Community to be Net Zero: A Case Study from Cornwall”. This was a sell-out, with people queuing to get in, and helped to demonstrate the excellent work the FNZ farmers are doing as part of their communities. The film we produced was well-received, even earning a “whoop” from the crowd! It is available to watch here: https://farmcarbontoolkit.org.uk/2024/01/18/five-farms-in-cornwall/.

As well as the impressive range of sessions we were able to attend (covering everything from the role of vets in ecological sustainability to farm succession planning), we watched the premiere of “Six Inches of Soil” – a new film about farming starring Farm Net Zero monitor farmer Ben Thomas and featuring Farm Net Zero’s own Hannah Jones.

Premiere of “Six Inches of Soil”

Sustainable crop rotations

Posted on March 21, 2024 by - Insights, News

Looking back at 2023, it can safely be defined as a challenging year with the wettest autumn / winter we have seen for decades. Farmers have not only faced the challenge of maximising yields and optimising soil health, but also battling against the elements to drill crops into the ground. Hoping for a kinder 2024, this blog explores options to build resilience into crop rotations aiming to cultivate a balance between high yields and optimum soil health.

Minimising cultivation

First things first, this blog is not telling you to get rid of the plough. All machinery serves a purpose, it is just about knowing when to intervene. Within systems that have reduced their cultivations or those that have been adopting conservation ploughing (i.e. ploughing one year in three or more), soils tend to be more resilient through improved soil structure. Good soil structure has a matrix of small, medium, and large pore spaces able to retain and drain water as well as provide pockets of air for respiration and gaseous exchange and water for nutrient exchange. When we till the soil, especially when ground conditions are sub-optimum, we run the risk of squashing the pores and causing compaction and soil degradation, reducing water infiltration, increasing anaerobism (lack of oxygen) and building up toxic gases, all contributing to poor soil health and disappointing crop yields.

Carry out a VESS: Visual Evaluation of Soil Structure

It is important to get out there and dig holes; get to know your soil and how it behaves under certain environmental conditions. When you assess the soil structure, look for compaction and note its depth. Can this be remedied by deeper rooting species, or does it require mechanical intervention? Always keep the depth in mind as it’s no good going in too deep or too shallow.

Diversity

Sustainable rotations begin with diversity. A multipronged approach combining arable crops, legumes and cover crops takes full advantage of all the tools we have in the box as arable farmers. Diversity in species above ground matches diversity in species below ground: helping to break pest and disease cycles and improve soil health through provision of various rooting architecture, root exudates and crop residues. The soil is alive and many of the nutrients available to crops and plants come from the activity of soil-dwelling organisms that are busy stabilising, consuming and releasing nutrients for the benefit of the crop. Diversity in crops and roots therefore contribute a rich source of food for soil fauna to feast on, enhancing soil fertility and subsequent crop health and crop yield.

Where pests and disease more commonly thrive is within monocultures e.g. continuous cereals. We are seeing an increasing reliance on chemicals to control and abate problems within these systems, depleting our soils of beneficials in the process. Similarly, a lack of diversity in roots are only supporting a limited community of microorganisms. This is not sustainable; therefore, we must explore how we can incorporate more species within the rotation. OSR is one of many good examples. It has deep roots and is easily diversified with companions e.g. vetch / buckwheat / berseem clover. Maximising the number of crop species in a rotation will optimise the diversity of organisms below ground.

On farm, an easy way to measure how biologically active our soils are is by monitoring earthworm numbers. Earthworms are at the top of the soil food web and will travel to and reside where there is lots of food; they are also brilliant at breaking down residues and redistributing nutrients throughout the soil profile. How many worms do you count in a spade full of soil? Where are you finding the most? And can those numbers be replicated elsewhere on farm?

Legumes

The blog wouldn’t be complete without talking about legumes. Approximately 78% of the air is nitrogen. If we can harness the power of leguminous plants to fix some of that nitrogen, we can cut costs by reducing the amount of artificial fertiliser whilst also minimising our environmental impact. Consider incorporating peas or beans into the rotation as stand-alone crops, clover as a companion crop or include legumes as part of a cover crop mix. Farmers are often able to reduce the amount of bagged fertiliser used after legumes.

Legumes to build fertility: field beans in an arable rotation

If possible, trial a small reduction across a proportion of the field first and see how your yields fare – you might be pleasantly surprised.

Cover Crops

Utilising cover crops between winter and spring cropping is an excellent approach to building soil health in between cash crops: stabilising soil structure by maintaining living roots in the soil throughout the year, feeding the soil biology and acting as a buffer protecting the soil from adverse weather conditions.

On top of this, one of the biggest advantages of cover crops is that they are great at scavenging and holding onto residual nutrients left over from the previous crop, reducing losses from leaching. Once destroyed, the nutrients will be released back into the soil, improving nutrient use efficiency, and potentially enabling a reduction in artificial inputs required by the next crop.

Cover crop mixes should be tailored to your needs and soil type. It’s better to choose species type based on what you are trying to achieve: building fertility, keeping the ground covered, and/or alleviating compaction.

If possible, conduct trials and aim to include 3 or more species in the mix to capitalise on diversity in both the above-ground biomass for optimised photosynthetic potential (think assortment of leaf shapes to increase surface area from which to harness the sun’s energy), and below-ground biomass through varied rooting structures, depths, shapes and sizes (pumping sugars and carbon into the soil, building soil organic matter and feeding the soil biology).

Livestock Integration

Integrating grazing livestock into your rotation offers an alternative technique to destroying cover crops whilst also adding valuable organic matter to the soil in the form of manure. Including grass and clover leys also gives the ground a break, allowing time for recovery and offers another income stream from grazing or silage / hay making. The benefits of perennial roots in the ground over an extended period, especially if a mix of roots at different depths, will help to improve soil structure and build fertility for future crops.

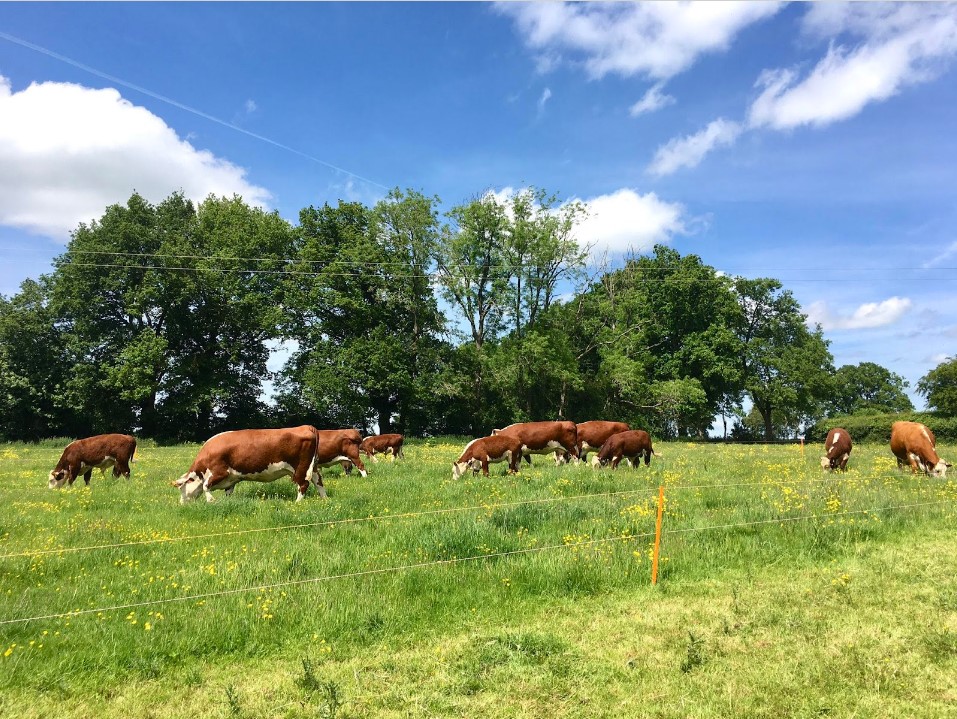

Grazing livestock returning soil organic matter and building soil health.

Explore the Sustainable Farming Incentive options to see if herbal leys or a 2-year legume fallow could be economically viable.

Monitoring and Adapting

It is important to remember that there is no one-size-fits-all approach; be adaptive and tailor options to local environment and conditions. Trial different methods and see which suits your system best.

Regularly monitoring soil health, accounting for all nutrient sources, and keeping an eye on pest and disease prevalence alongside crop performance and weather is crucial to make informed adjustments to rotations as needed.

In summary, farmers are in a unique position in that yes, we produce emissions in the process of producing nutritious food however, we can also build soil health and boost biodiversity simultaneously contributing to offsetting our own emissions and future proofing our farms and landscapes. Implementing a sustainable crop rotation in the UK is not just about growing crops; it’s about promoting a future where productivity and soil health co-exist. By diversifying crops, integrating legumes, embracing cover crops, minimising tillage, incorporating livestock, and tailoring practices to local conditions, it is possible to achieve a resilient and sustainable agricultural landscape supporting local and wider communities for years to come.

How to avoid ‘double counting’ your carbon

Posted on March 21, 2024 by - Calculator, News

Carbon accounting is a fast-moving space, and here at FCT, keeping on top of best practices is one of our top priorities. We commission regular external reviews of all our emissions factors to make sure we’re as compliant and up-to-date as possible. And yet even with the best data available, there’s always the possibility of human error (we all do it!) cropping up in a carbon report.

One area we’re particularly keen to address is how to avoid ‘double counting’ when it comes to farming footprints. This refers to counting the same carbon/CO2e in different places, often (but not always) in the same report.

For example, you might record all your freight and logistics fuel use in the ‘Fuels’ section of our Calculator, only to duplicate the entry under the ‘Distribution’ section. This would result in counting the same emissions twice, artificially inflating the total emissions figure.

These errors can be subtle and easy mistakes to make, so it’s worth reading on to find out how to avoid them and embrace best practices.

How is double counting possible?

Our Carbon Calculator has many different emissions factors that you can record, reflecting the wide variety of needs and business profiles in modern farming. Because of the need for informative metrics and KPIs, our Calculator sometimes offers the option to record an emission or offset in more than one section.

You can therefore choose to either record all of the carbon in one section, or to split it out for better insight in your final report. For example, you may want to be able to see the amount of fuel used in farming operations vs. the fuel used in the distribution of goods. Being able to record the carbon in more than one place is crucial to business insight, but it does introduce the risk of error.

If we want to use these informative metrics, then it’s important to be aware of when you might double-count your carbon.

Where in the Calculator might I be double counting?

We’ve listed below some of the most common areas where double counting may occur in our Calculator. For each one we’ve given an example of how it occurs, and the best practice in order to avoid it.

Animal Feeds – Home grown vs. Bought in

If you are growing your own animal feed on-farm, then you don’t need to account for this in the ‘Livestock’ section. To do so would overestimate your emissions. The Livestock section is only for feeds that are specifically bought in.

To avoid the double count: Make sure that anything recorded as a feed in the Livestock section is a bought-in feed. If not, it doesn’t need to be counted there!

Materials vs. Inventory

The Materials section of our Calculator allows you to record a wide variety of items that are used in construction and repair work. Our Inventory section, on the other hand, is there to record larger capital items such as new outbuildings or farm machinery. This difference is key, as any items within the Inventory section will have their carbon impact depreciated over a period of 10 years.

It’s also possible to record your own custom building projects inside the Inventory section. For example, you might choose to record all the materials associated with a new outbuilding. This might be done so that you can achieve a more precise footprint for a non-standard construction.

Where materials are purchased for running or regular repairs of existing installations, record these in the Materials section.

To avoid the double count: Make sure you’re not recording any custom-build projects in both Materials and Inventory. They only need to be recorded in one of these sections!

Sequestration – Double Counting Offsets

If you have previously sold any carbon offsets, for example through soil organic carbon sequestration, then you should not count the offset in your report. To do so would be an example of double counting as the benefits are no longer attributable to your farm business.

To avoid the double count: Make sure you’re only recording potential sequestration that hasn’t been sold or accounted for elsewhere.

Sequestration – Double Counting potential sequestration

If you have entered an area of land under the sequestration option: “Soil Organic Matter” or “Soil Organic Carbon” (using information from soil sampling), you should not also enter those areas of land under other sequestration options (such as Countryside Stewardship Schemes, even if the land is receiving payment for that scheme). Direct soil sampling is preferable in this scenario. Similarly, whilst in practice you can “stack” the payments you receive from stewardship grants, you must only enter areas of land for sequestration under one potential sequestration option (so if “My field” is 5ha, I can enter soil sampling data from those 5ha OR the fact that they are under a Countryside Stewardship Scheme).

To avoid the double count: Include each field area under only one potential ‘Sequestration’ option.

Fuel Use – Distribution vs. Farming Operations

If you want to split out your fuel use into distribution and farming operations, you have the option to record these separately. Any farm fuel use such as red diesel can be recorded under ‘Fuels’. Any fuel used in moving goods can be put under ‘Distribution’.

To avoid the double count: We recommend splitting out fuel use between ‘Fuels’ (i.e. farm operations) and ‘Distribution’.

The Exceptions

As with all good rules, there are some apparent exceptions:

  • you CAN add multiple crops that have been grown on the same area of land in the same year (but only include those that have been harvested or terminated within the reporting period).

Open for entries: Carbon Farmer of the Year

Posted on April 10, 2024 by - Carbon Farmer of the Year, News

Announcing the launch of the 2024 Carbon Farmer of the Year Competition

February of this year sees the launch of the 2024 Farm Carbon Toolkit’s Carbon Farmer of the Year Competition. This competition champions UK farmers who are leading the way in adopting farming practices and developing new technologies which reduce farm emissions whilst optimising output, and adapting to climate change.

After the success of last year’s competition we are delighted to announce that the 2024 competition is now open for entries. Click here to learn more.
